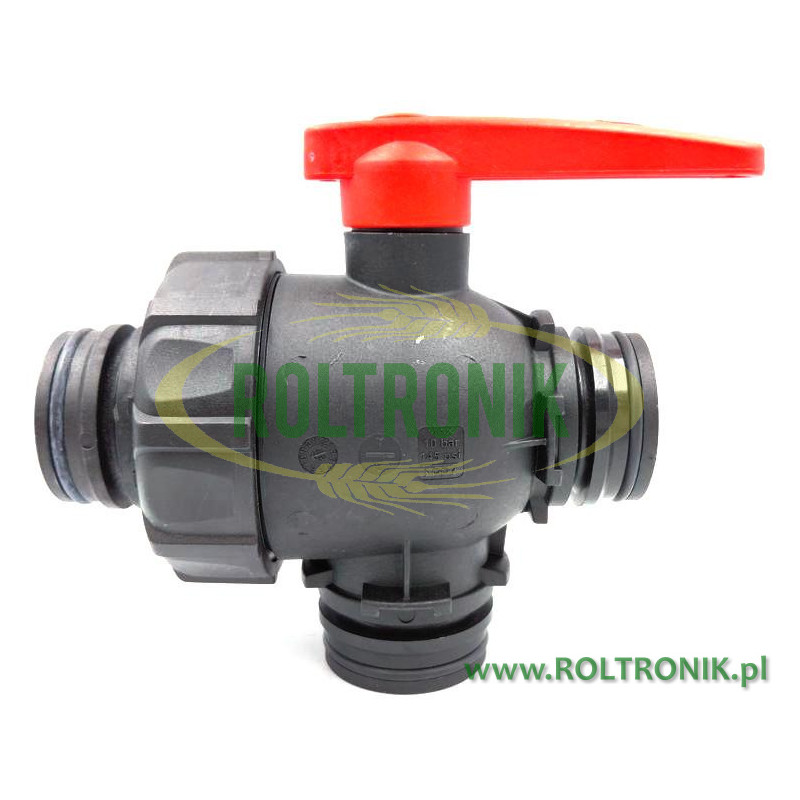

3-way ball valve T6, ARAG

Part number 45524446
Unit Piece
Description
  • Available with handle with extended height for panel fitting
  • Fork coupling male
  • Body and ball in polypropylene reinforced with fiberglass
  • EPDM seals (Viton® seals available upon request)
  • Teflon® seat
  • Available are two versions of the valves with the flow: intermittent and continuous
  • Part number with the letter "A" means a valve with long lever
  • Fittnig brass
T T6
P max (bar) 10
DN (mm) 40
A (mm) 85
A1 (mm) 106
B (mm) 48
C (mm) 200
E (mm) 48
G (mm) 51
H (mm) 141
H1 (mm) 162
M (mm) 126
Wersja 2
X (mm) 27
Y (mm) 34
Z M8
