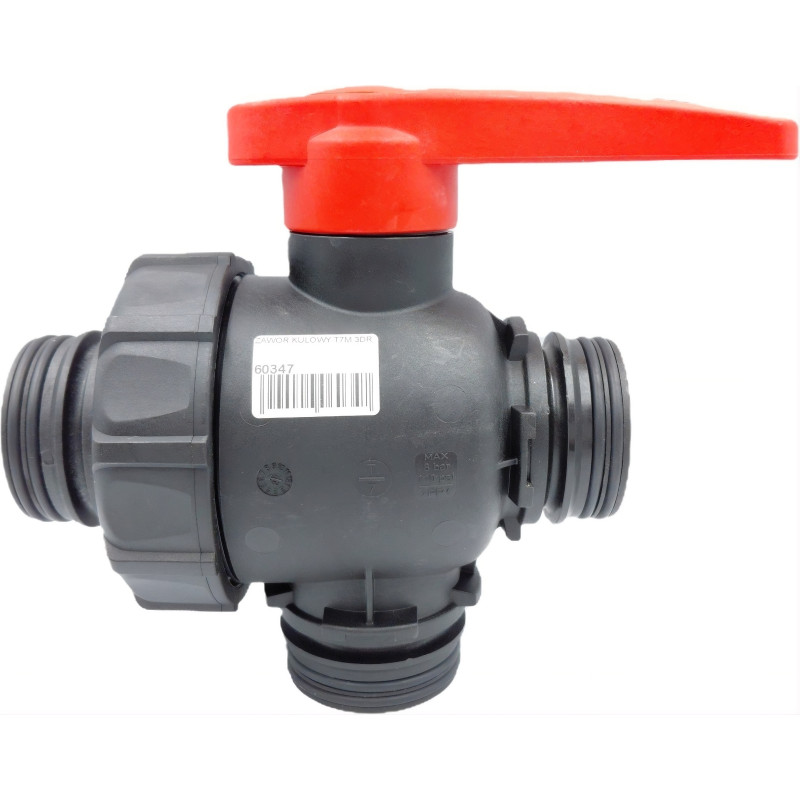

3-way valve T7, ARAG

3-way valve T7, ARAG, 45524447. 45534447, 45524447A
  • 23-way valve T7, ARAG
  • 23-way valve T7, ARAG
  • 23-way valve T7, ARAG

Ask for price:

45524447. 45534447, 45524447A
Unavailable

3-way valve T7, ARAG

Part number 45524447, 45534447, 45524447A, 45534447A
Unit Piece
Description
  • Available with handle with extended height for panel fitting
  • Fork coupling male
  • Body and ball in polypropylene reinforced with fiberglass
  • EPDM seals (Viton® seals available upon request)
  • Teflon® seat
  • Available are two versions of the valves with the flow: intermittent and continuous
  • Part number with the letter "A" means a valve with long lever
  • Fitting brass
T T7
P max (bar) 8
DN (mm) 50
A (mm) 107
A1 (mm) 135
B (mm) 57
C (mm) 260
E (mm) 58
G (mm) 51
H (mm) 172
H1 (mm) 200
M (mm) 142
Wersja 2
X (mm) 43
Y (mm) 78
Z M8
