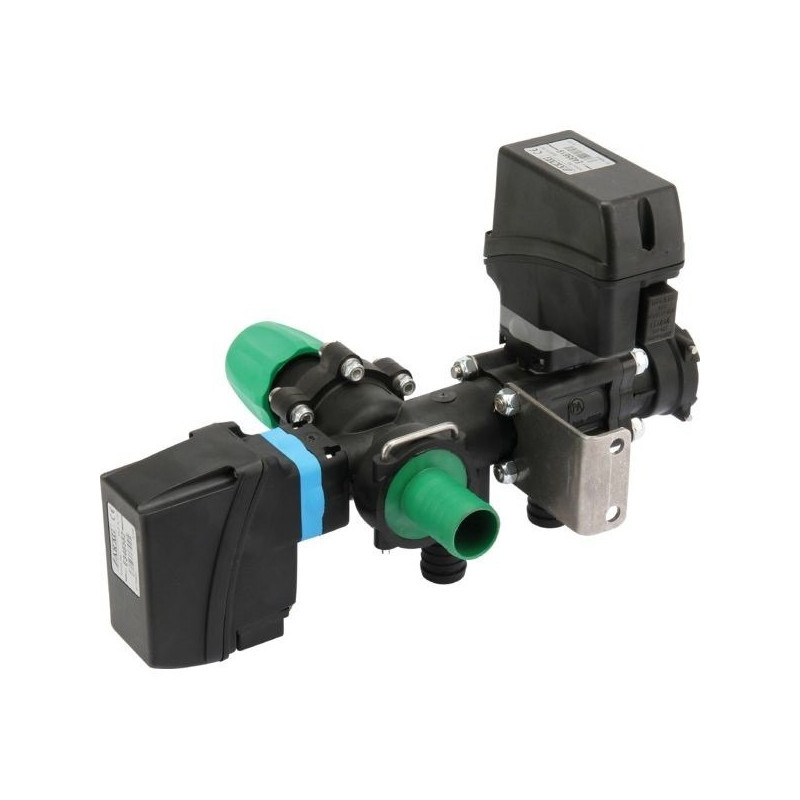

Main valve with electric proportional valve (gray) 60l/min

Reference 871520Q50

In stock: Unavailable

Part number	871520Q50
Technical information	Consists of main valve 871 502 (with hose connection 25 mm - 473 001.A25; bypass 35 mm - 471 202.A45) and proportional control valve 863 ;with 19 mm hose connection - 463 001.A19.
Unit	Piece
P max (bar)	20
Energy consumption (A)	1
On time (main valve) (sec)	0.6
Maximum flow (main valve) (l/min)	150 (3 bar)
Hose connection, inlet Ø (main valve) (mm)	25
Hose connection, bypass Ø (main valve) (mm)	30
On time (electric proportional control valve) (sec)	7
Maximum flow (proportional control valve) (l/min)	60
Hose connection, bypass Ø (proportional control valve) (mm)	13
T	T5
Voltage (V)	12
Components	8710502; 8630022S
Fits	Bravo / Delta
