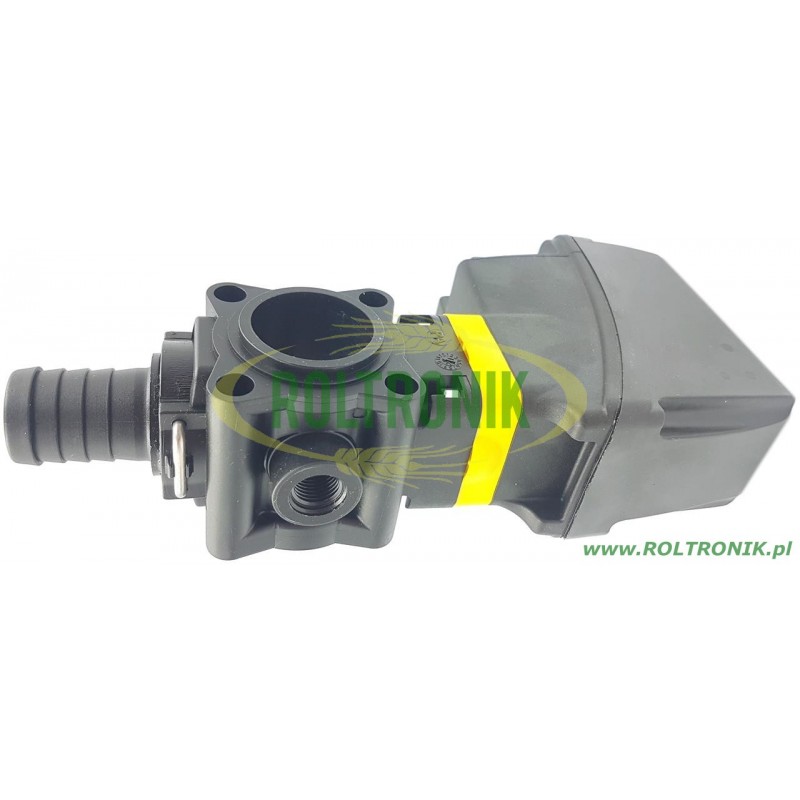

Electric proportional control valve (yellow) 150l/min

Electric proportional control valve (yellow) 150l/min, 8630024, Arag

zł788.00

VAT included

Quantity

Reference 8630024

In stock: Available

Flow (l/min)	150
P max (bar)	40
Response time (sec)	14
O connections on the discharge side (mm)	25

Electric proportional control valve (yellow) 150l/min

Part number	8630024
Application	- Regulates the flow in the distribution units in proportion to the engine speed (rpm)/speed - Suitable for threaded fittings - In the case of modular fittings (463/T5) use an adapter
Properties	- Glass fiber reinforced nylon housing - Delrin® and AISI 303 stainless steel internal components - Viton® seals - Equipped with hose connections for inlet and bypass - Resettable fuse
Unit	Piece
Flow (l/min)	150
P max (bar)	40
Response time (sec)	14
O connections on the discharge side (mm)	25
Connection	863
Voltage (V)	12V/0.5A
