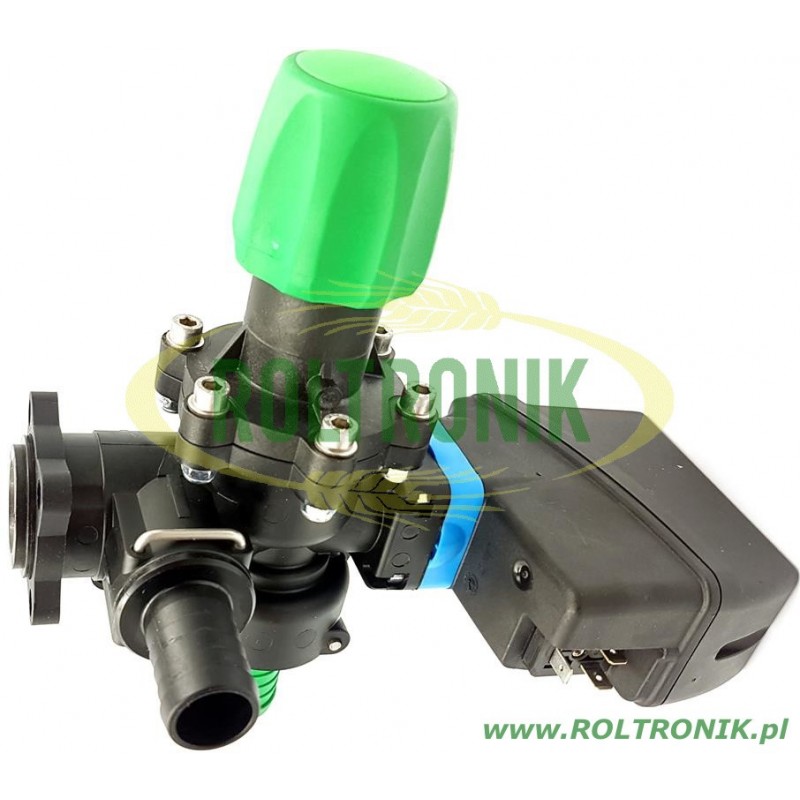

Main control solenoid valve with adjustable max. pressure valve series 871

Main control solenoid valve with adjustable max. pressure valve series 871, 8710502, Arag
  • 2Main control solenoid valve with adjustable max. pressure valve series 871
  • 2Main control solenoid valve with adjustable max. pressure valve series 871
  • 2Main control solenoid valve with adjustable max. pressure valve series 871
  • 2Main control solenoid valve with adjustable max. pressure valve series 871
  • 2Main control solenoid valve with adjustable max. pressure valve series 871
zł886.00
VAT included
Quantity

8710502
Available
P max (bar) 30
Max flow (l/min) 150 (3 bar)

Main control solenoid valve with adjustable max. pressure valve series 871

Part number 8710502
Application - Gear motor: controls the opening/closing of the main control valve and, as a result, the introduction of liquid into the system. (Open valve: liquid is transferred to the working circuit; Closed valve: liquid is transferred to the tank)
- Overpressure valve: Releases excess fluid when the programmed maximum pressure is reached. The valve is manually adjustable.
- Suitable for screw-connected fittings
- For use in modular fittings, use an adapter (463/ T5 or 464/ T5)
Properties - Glass fiber reinforced nylon housing
- Delrin® and AISI 303 stainless steel internal components
- Viton® seals
- They are equipped with hose connections for drainage.
Consists of - Consists of a main valve (with gear motor) with an adjustable overpressure valve
Unit Piece
P max (bar)

10bar - 8710501

20bar - 8710502

30bar - 8710503

Max flow (l/min) 150 (3 bar)
Connection 863
Switching time (ms) (sec) 0.6
Voltage (V) 12
Energy consumption (A) 0.5
Hose inlet Ø (mm) 25
Hose bypass Ø (mm) 30
