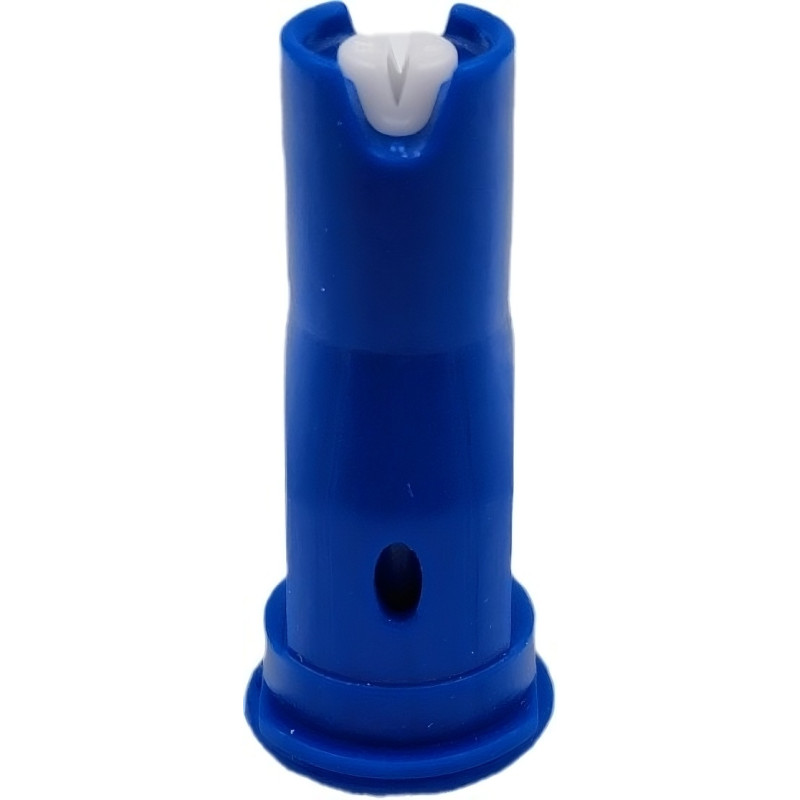

LECHLER ID3 03 flat fan atomizer

LECHLER ID3 03 flat fan atomizer, ID312003C
  • 2LECHLER ID3 03 flat fan atomizer
  • 2LECHLER ID3 03 flat fan atomizer
zł53.00
VAT included

Cena obowiązuje dla wszystkich zamówień złożonych przez sklep internetowy.

Quantity

Lechler ID3 120-04 ceramic atomizer
04
Rozpylacz Lechler ID3 120-025 CERAMIKA
025
ID312003C
A large amount in stock

LECHLER ID3 03 flat fan atomizer

Material: ceramics
Size: 03
Application:
  • plant protection products
  • growth regulators
Technical specifications:
  • Automatic air suction
  • Material: polymer (POM), ceramic (C)
  • Sizes: 01 to 08
  • Working pressure range:
    ID-01 to -015 from 3.0 to 8.0 bar
    ID-02 to -08 from 2.0 to 8.0 bar
  • Extremely low liquid drift over the full pressure range
  • Good coverage of the leaf surface thanks to the spraying of aerated droplets
  • Compatible with IS ejector end nozzles (same size)
  • Suitable for bayonet caps SW 10 mm and threaded nuts (Ø 12.6 mm)
  • Fits hubcap system with 10 mm mounting hole (SW10)
Advantages
  • Mechanically resistant two-piece construction of the nozzles
    – 9 mm shorter body compared to ID atomizers
    – extension of the profiled lower part of the body – protection of the outlet nozzle
    – streamlined body shape – facilitates cleaning of sprayers
  • ejector insert with flat dosing orifice surface
    – trouble-free removal of dirt and deposits
    – tool-free sprayer removal
    – easier positioning of the ejector insert thanks to the profiled cover latches
    – O-ring seal on the ejector insert body ensuring tightness of the ejector chamber
  • Extended operating pressure range
    from 2.0 to 8.0 bar
  • Long ejector insert provides stable resistance to liquid drift
    – reduced share of fine droplet fractions also in higher pressure ranges
    – high kinetic energy of drops even at high operating speeds (canopy penetration)
    – extended range of working fluid dosing in a wide range of pressures and operating speeds
    – optimal timing of the procedure even in unfavorable weather conditions
    – possibility of performing treatments at wind speeds up to approx. 6 m/s in accordance with the principles of "Good Agricultural Practice"
    – high drift reduction potential – up to 90% at an operating pressure of 2.0 bar
  • Cost-effective polymer version, extremely wear-resistant ceramic inserts
  • Limited risk of clogging – large cross-sections of liquid channels and profiled air channels
  • Very good structure of liquid coverage and high ability to penetrate the canopy, high biological effectiveness of the preparations
