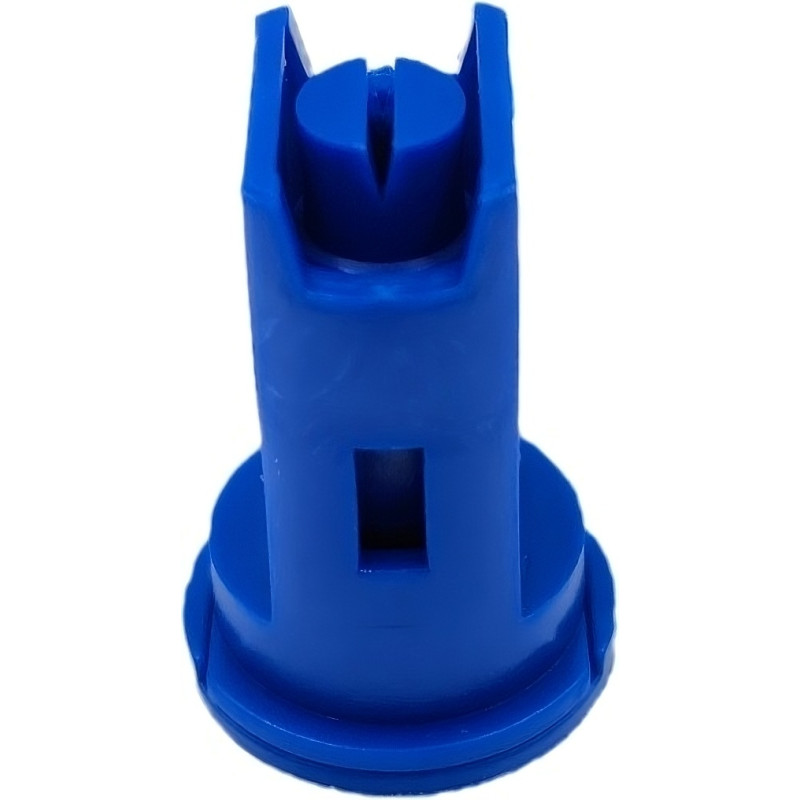

Air-injector compact nozzles IDK 03 LECHLER

Air-injector compact nozzles IDK LECHLER

Size: from 01 to 06

Spraying angle: 120°

Material: POM, ceramic

Properties:

• Automatic air intake
• Pressure range:
  IDK – 01 to 03: from 1,5 to 6,0 bar
  IDK – 04 to 06: from 1,0 to 6,0 bar
• Extremely low drift potential for pressure range up to
   3 bar
• At pressures above 3 bar, less drift resistance than other well-known ID/IDN nozzles, i.e., coarse-to medium droplet size characteristic
• Very compact design (8 mm width across flats, 22 mm long)
• Fits all bayonet cap systems with 8 mm AF and threaded caps
• Possibility of using at the wind speed up to 5 m/s

Application:

• Application of plant protectants and growth regulators
• Well-suited for application of liquid fertilizer at pressure ranges 1,0 – 2,5 bar

Main benefits of IDK nozzles:

• Inexpensive alternative to conventional standard-type nozzles
• One-piece nozzle with reproducibly fixed-position injector for toolless removal
• Easy installation, with no adapter necessary, fits typical caps
• Hard-wearing and non-clogging thanks to lateral air-aspirating channels of ample size
• Very good deposition structure and canopy penetration
• Designed for »good modern practice«, i.e. for use at wind velocities up to 5 m/s and higher sprayer speeds and at pressure 2,5 bar

When ordering give us please:

• nozzle symbol
• material which it is made of
• size
