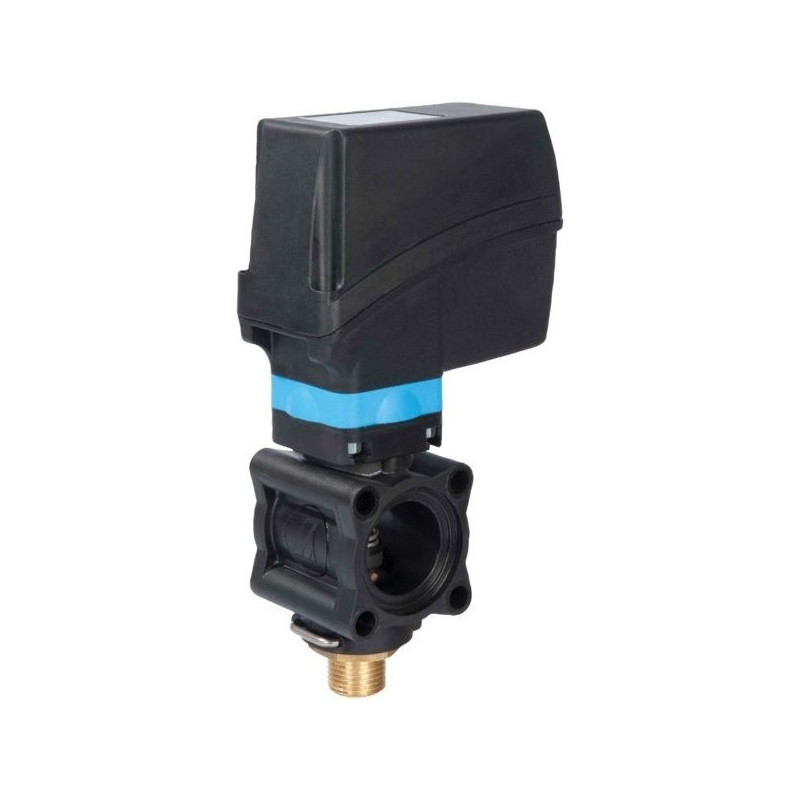

Sectional solenoid valve 863 without compensation (40 bar)

Reference 8630001H

In stock: Unavailable

Part number	8630001H
Application	- For opening and closing individual lever sections - For field sprayers or spraying devices (observe pressure range) - Suitable for screw-connected fittings - For use in modular fittings, use an adapter (463/ T5 or 473/ T5)
Properties	- Glass fiber reinforced nylon housing - Delrin® and AISI 303 stainless steel internal components - Viton® seals
Unit	Piece
P max (bar)	40
Max flow l/min	35
Switching time (ms) (ms)	600
Connection	863
Voltage (V)	12V/0.7A
O connections on the discharge side (Inch)	1/2 BSP
Constant pressure manifold connection	NO
