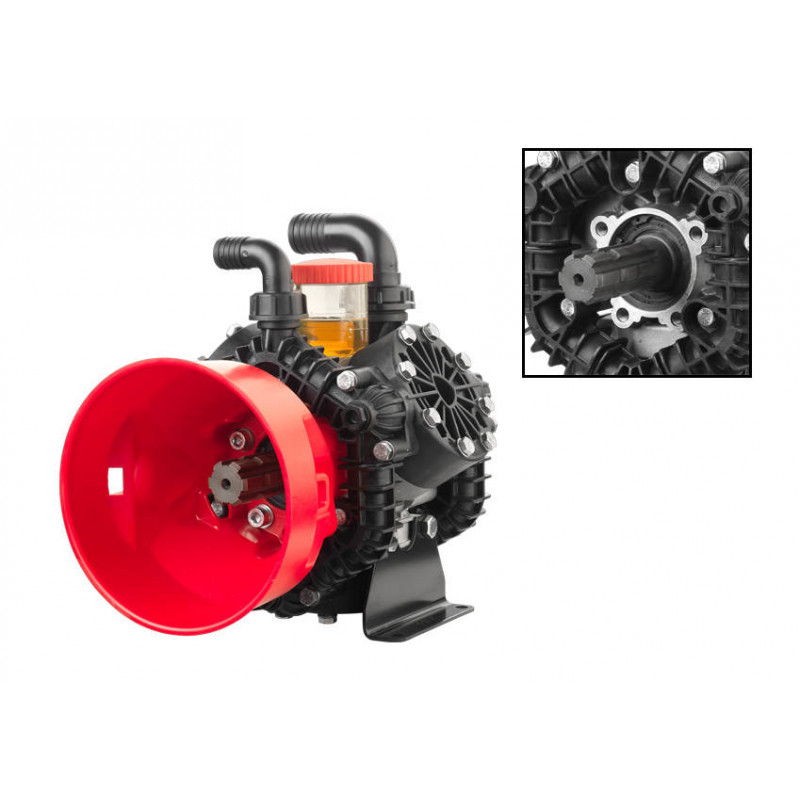

Annovi Reverberi AR80 LFP SP pump

Part number 32011
Application - Semi-hydraulic low-pressure diaphragm pumps for weed control and liquid fertilizer application
- AR DUE, AR202 and AR252 pumps are diaphragm pumps for gardening
Properties - All components in contact with liquids are plastic-coated. In the case of the AR DUE, AR202, and AR252, they are made of anodized aluminum.
- The crank mechanism in the oil bath is connected to the control tank (except for the AR DUE version)
- Galvanically protected screws made of Dacromet
Consists of - Diaphragm-piston pump with safety valve and air chamber (except AR DUE, AR202 and AR252 versions)
- Pumps are supplied with rubber diaphragms as standard
Technical information

Available models: Drive shaft type:

- SP: pump with universal drive shaft
- Bp C: pump with cardan shaft 1 3/8" 6-piece
- 32043 - Bp C/C: pump with through shaft: Cardan shaft on both sides 1 3/8" - 6-piece - 1 3/8" - 6-piece
- BpTwin: pump with through shaft: Cardan shaft on both sides 1 3/8" - 6-piece - 1 3/8" - 6-piece

Unit Piece
Max temp (°C) 60
Pump capacity (l/min) 76.4
Pmax (bar) 20
Power (kW) 3.4
Version 3 membranes
Shaft type 1 3/8" (6)
O suction side connections (mm) 40
O connections on the discharge side (mm) 25
Max. speed (rpm) 550
Width (mm) 360
Height (mm) 369
Weight (kg) 14
