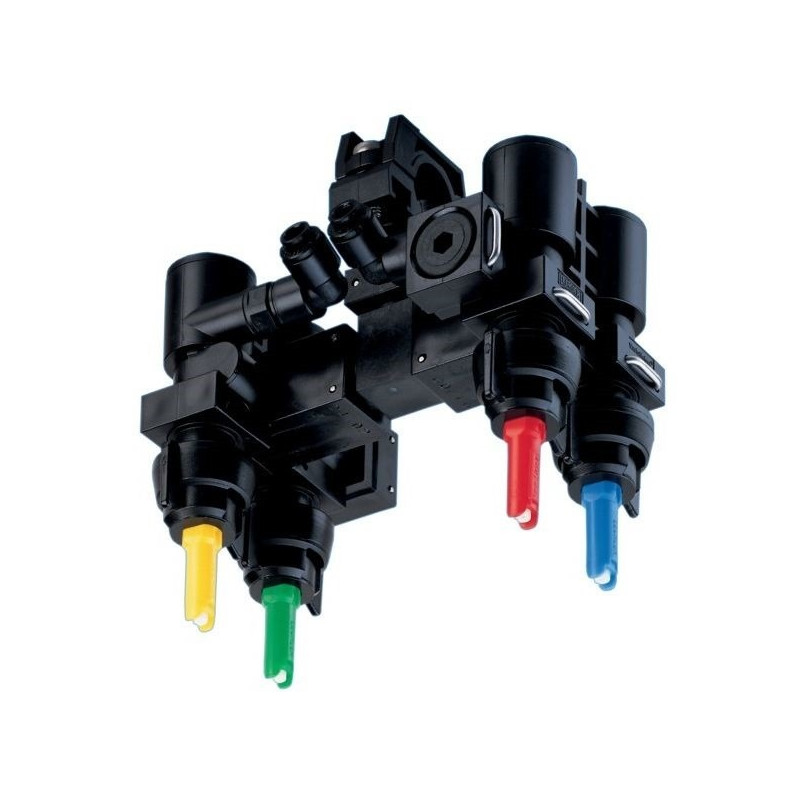

VarioSelect head d.3/4" - pneumatic

VarioSelect head d.3/4" - pneumatic, 065286MN27B00, Lechler
  • 2VarioSelect head d.3/4" - pneumatic

Ask for price:

065286MN27B00
Unavailable
For the pipe: 26.4mm, 3/4"
Hole
 11mm

VarioSelect head d.3/4" - pneumatic

Part number 065286MN27B00
Application - Double or quadruple nozzle holder for use of plant protection products, growth regulators and urea and ammonium nitrate solutions adapted to different locations
- Suitable for use with a ring pipe, e.g. for circulation and rinsing
Properties - Fluid entry in the middle
- A single valve is positioned directly in front of the nozzle, ensuring instantaneous jet formation thanks to constant pressure in the line
- Max. flow rate 10 l/min (1/2") or 25 l/min (1")
- Pressure drop: max. 0.4 bar
- The single valve is opened by compressed air (4.5 bar) and closed by spring force
- Pneumatic connections: 1/8"
- Housing: POM
- Nozzle holder: POM plastic, reinforced with glass fiber
- O-rings: EPDM, Viton
- Metal parts: stainless steel
Consists of - VarioSelect
- No nozzles
Unit Piece
D (mm) 3/4"
F (mm) 11
Max switching range (bar) 8
Packaging (pcs.) 1
