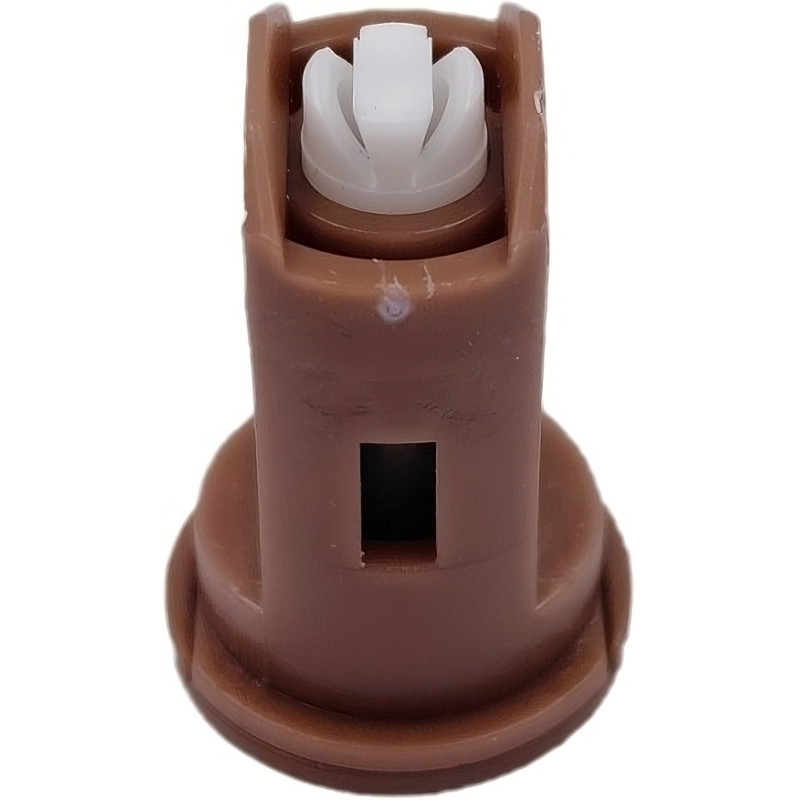

Twin flat spray air-injector compact nozzles IDKT LECHLER

Twin flat spray air-injector compact nozzles IDKT LECHLER

Size: from 015 to 06

Spraying angle:120°

Material: POM, ceramic

Properties:

• Air-aspirating twin flat spray nozzle, fans are angled with 60° between each spray pattern forward and backward
• Pressure range:
  IDKT from 02 to 025: 1,5 – 6,0 bar
  IDKT from 03 to 06: 1,0 – 6,0 bar
• Droplet spectra extreme coarse to medium
• Very low drift potential in pressure range up to 3.0 bar
• Very compact design – only 22 mm long
  Fits all bayonet cap systems with 8 mm AF and threaded caps
• Included in the lists of JKI (former BBA)

Application:

• Particularly contact (semi-) systemic plant protectants
• Potato blight control and desiccation
• Ears treatment
• All herbicide applications in particular on low fillage systems
• Vegetable-growing

Main benefits of air-injector compact nozzles:

• The advantages of ejector nozzles (low drift potential,canopy penetration) are combined  with an excellent side coverage of traditional plants degree  (small droplets) of twin jet nozzles
• Compact design allows their application on the each type of the crop boom, limited risk of mechanical damages (only 22 mm lenght)
• Very low drift potential compared to conventional Twin nozzles
• Thanks to two fans, increased number of droplets and impacts compared to normal air-injector nozzle – better coverage of the leaves with liquid
• Excellent coverage on dense foliage and vertical targets (stalk, ears)
• Optimal orifice protection through proper shaping of the polymer nozzles body
• Little danger of clogging at the nozzle tip thanks to central afflux profile
• Operating pressure measured at a nozzle (anti-drop valve)
• Measured values are related to water
• Before each season tabular values  should be compared with the values obtained during the nozzles "liter measuring"
• Use only nozzles of the same type and size

When ordering give us please:

• nozzle symbol
• material which it is made of
• size
