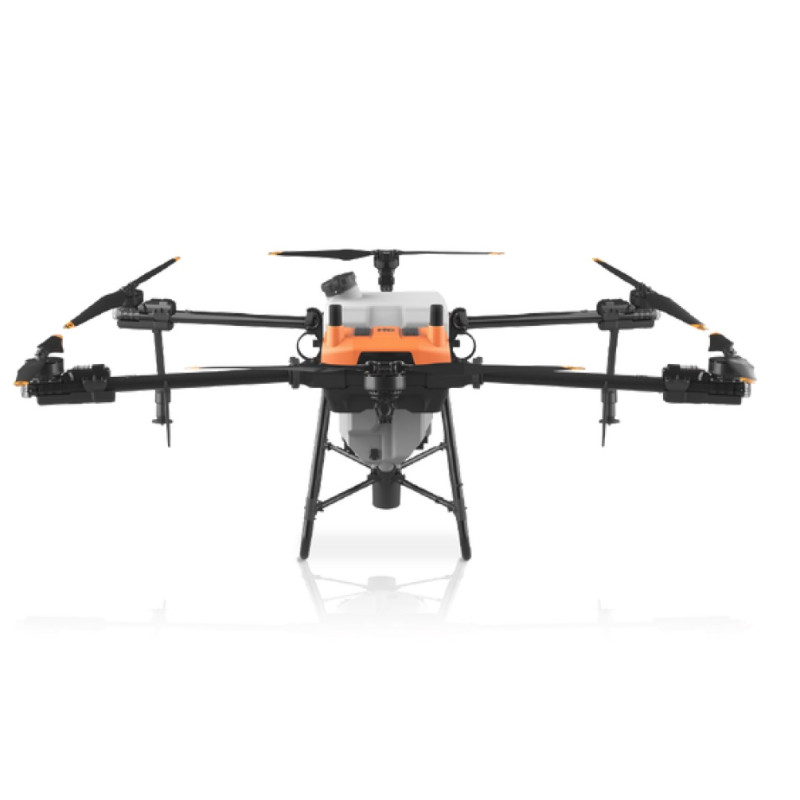

HUIDA 540S Vector Agr agricultural drone

HUIDA 540S Vector Agr agricultural drone

Parameters:

• spraying width: up to 11 m (working height 3.5 m +/_ 0.5 m)
• tank capacity: 40 l
• maximum flow rate is 24 l/min
• operating range: up to 2 km
• dimensions when unfolded: 2152x2085x877 mm
• dimensions when folded: 1138x682x877 mm
• maximum take-off weight: spraying - 89 kg / spreading 99 kg
• weight with battery 49 kg
• flight time: without load 18 min
• flight time maximum load: 7.5 min
• droplet diameter: centrifugal nozzle 50 um - 500 um
• RTK accuracy up to 10 cm
• determining work paths
• following the terrain
• automatic return after work is finished and automatic starting from the place where it was finished

Set composition:

• 8.5 Kw charger
• controller
• 2x battery
• agricultural drone
• 360 radar
• centrifugal nozzle 4 pcs.
• spray tank
