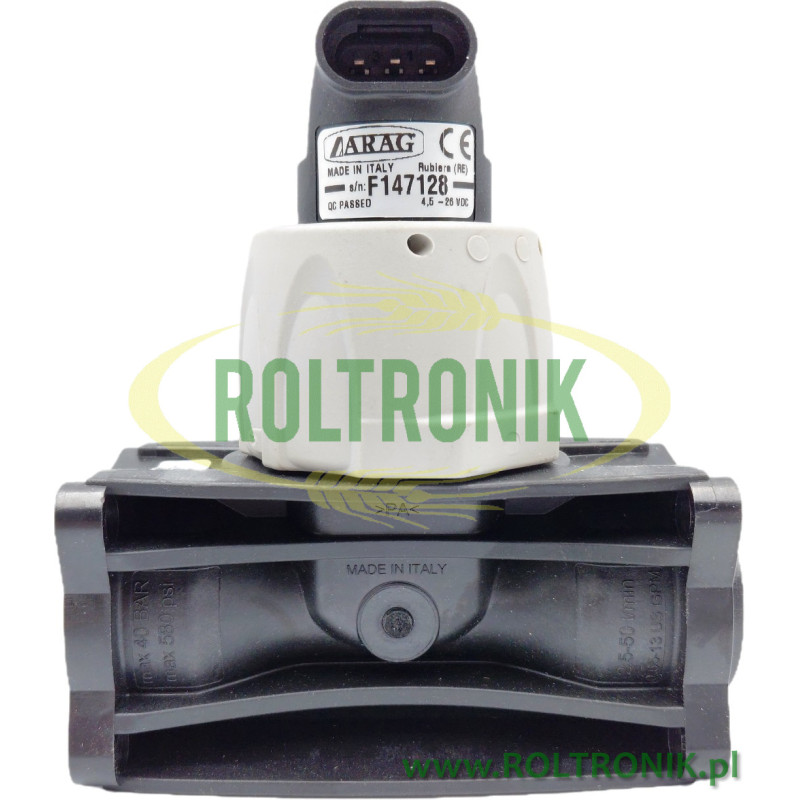

Paddle flow-meter 2,5 - 50 l/min WOLF 463, ARAG

Advantages:

• hi-precision and good price/performance ratio
• variants with fork connectors for flexible connection layout
• variants suitable for fitting into control units and equipped with hi-pressure brass flanges
• operating status LED
• sapphire paddle pin to minimize rotational friction and maximize sensitivity and accuracy
• paddle assembly equipped with "TWIST" system for either cleaning or replacing operations without the need of any tools
• fully seaed and watertight electronic sensor
• rates from 2.5 to 200 l/min

Characteristic:

• typical error 1% of full scale
• operating pressure: up to 40bar
• power supply 4.5 to 26V
• 0-12V pulse output with frequency proportional to rate
• max. consumption: 25mA
• parts in contact with the fluid are made of fiberglass and Delrin reinforced Nylon
