DRILL Control

DRILL Control, 30283620, Muller Elektronik

zł2,300.00

VAT included

Quantity

Obecnie brak na stanie

Reference 30283620

In stock: Unavailable

DRILL Control

Part number	30283620

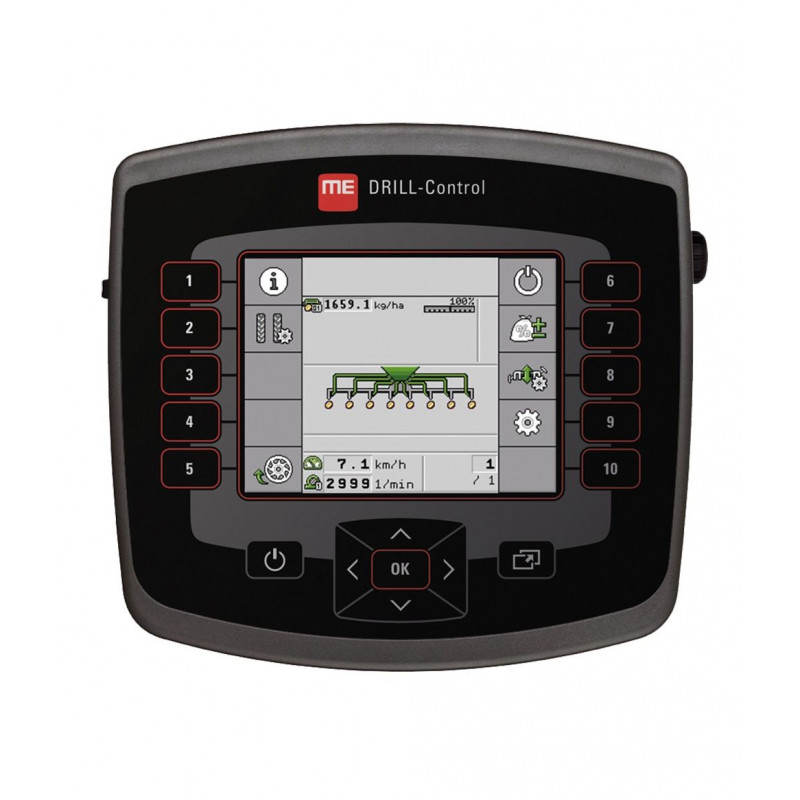

Description	DRILL Control is a closed-loop control system for seed drills equipped with a single seeding unit. The system controls the amount (kg) of seed sown according to preset parameters. Regulation is achieved via an electric motor controlling the seeding mechanism. Sowing is controlled and monitored via a control terminal equipped with a large, color, graphic LCD display. The system enables simple automation of the seeding system in technically simple seed drills.
Functions	DRILL Control allows you to configure your seed drill in just a few steps. Configuration can be performed via the configuration program installed on your PC or directly from the terminal. Internal DRILL-Control counters, such as a daily area counter, total counter, seed meter, time counter, and yield counter, provide documentation of the seeding operation. The standardized ASD interface allows you to control pre-programmed seeding rates. This allows the system to utilize the SECTION-Control function. As standard, the DRILL-Control system allows you to control disc markers and monitor air turbine speed and seed hopper fill level.
Detailed functions	41 modes for establishing technological paths saved in the system, possibility of defining further individual modes integrated database of seeds and fertilizers (up to 30 seed and fertilizer product varieties) test results assigned to each product working speed, number of seeds per ha and calibration factor starting the calibration test via the external knob
Advantages	simple installation and operation instant change of the width of technological paths weather-resistant construction reducing possible errors during sowing area counting for precise seed dosing can be used as a hectare counter in other machines
