Constant pressure distributor 2-5 sections 120-180l/min ARAG

Constant pressure distributor 2-5 sections 120-180l/min ARAG, 471140200, 471150200
  • 2Constant pressure distributor 2-5 sections 120-180l/min ARAG
  • 2Constant pressure distributor 2-5 sections 120-180l/min ARAG

Ask for price:

471140200, 471150200
Unavailable

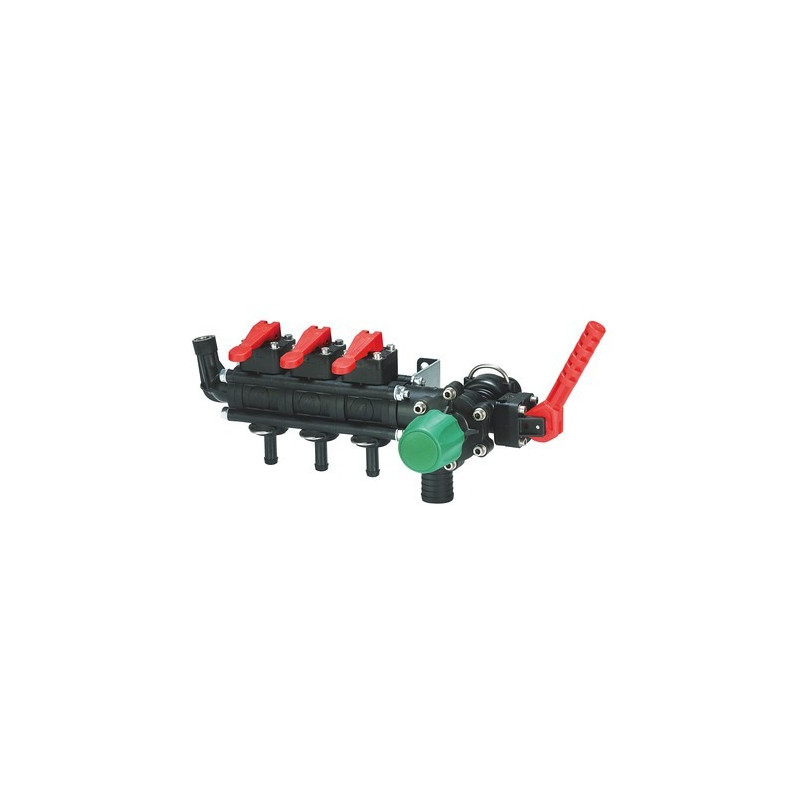

Constant pressure distributor 2-5 sections 120-180l/min ARAG

Part number 471120200, 471130200, 471140200, 471150200
Specifications - Modular design
Application - For field sprayers
Properties - Glass fiber reinforced nylon housing
- Delrin® and AISI 303 stainless steel internal components
- Viton® seals
- Equipped with hose connections for inlet and bypass.
Consists of - Main valve with overpressure valve
- Pressure gauge or pressure transducer connection
Unit Set
Flow (l/min) 120-180
Version 2-5 valves
P max (bar) 20
Number of partial widths 2-5
Composed of valves 463061 (from 2 to 5 sections) + 471202
