Electric control equipment 5 sections, 200 l/min, 20 bar, ARAG

Electric control equipment 5 sections, 200 l/min, 20 bar, ARAG, 4645502U7DSKIT
  • 2Electric control equipment 5 sections, 200 l/min, 20 bar, ARAG

Ask for price:

4645502U7DSKIT
Unavailable
P max (bar) 20
Number of partial widths 5

Electric control equipment 5 sections, 200 l/min, 20 bar, ARAG

Part number 4645502U7DSKIT
Specifications - Modular design
Benefits - Easy assembly and replacement of components using a spade connector
Application - For field sprayers

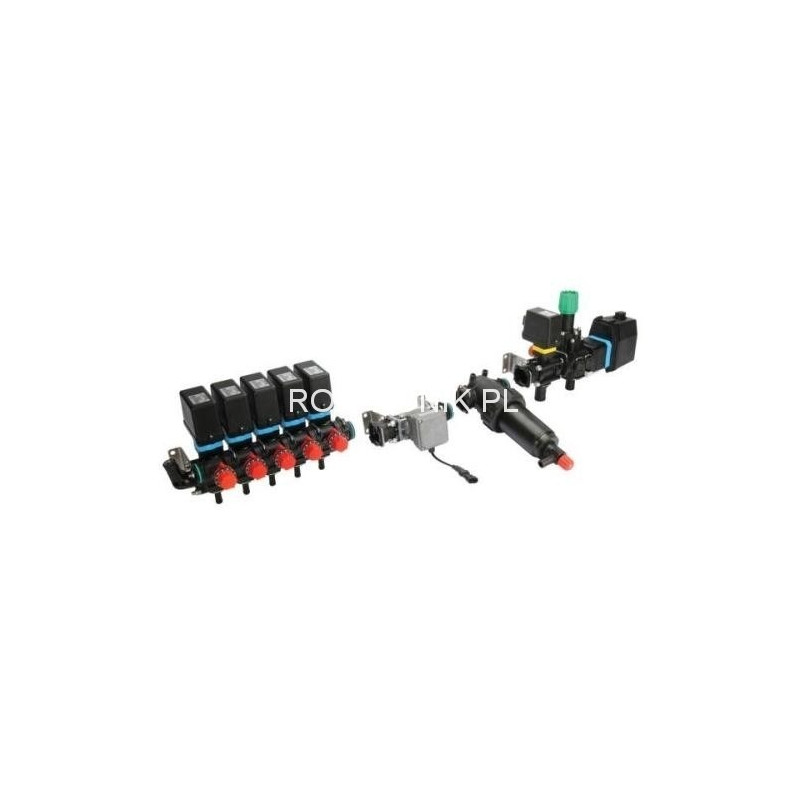

Consists of - Main valve with overpressure valve
- Proportional pressure control valve
- Pressure filter
- Flow meter
- 5 section valves with equal pressure collector, without female part on the discharge side;
- Pressure gauge or pressure transducer connection
- To be ordered separately: pressure transducer: 466113.200 (0-20 bar) for 180S, 300, 300S
Designed for BRAVO 180, 180S, 300, 300S
Unit Set
l/min 200
Voltage (V) 12
Actuator element Bravo 110, 120, 180, 300S, 400S
Version 5 valves
P max (bar) 20
Number of partial widths 5
+Components 46452U50; 32621M3; 4621AA4A5B5; 46301551
