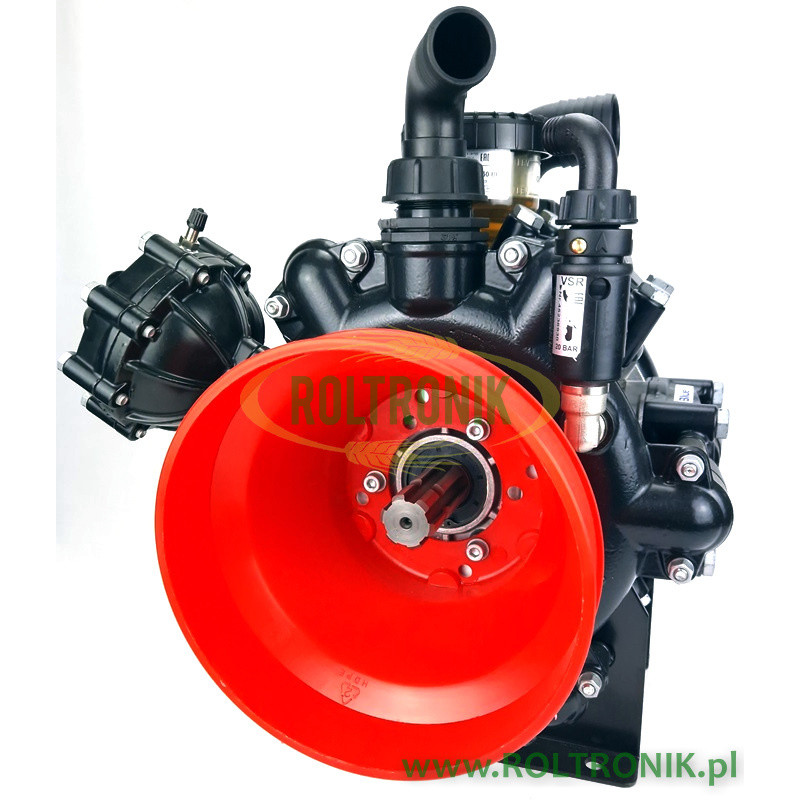

AR 250 Annovi Reverberi BLUEFLEX piston diaphragm pump

AR 250 Annovi Reverberi BLUEFLEX piston diaphragm pump, AR32043
  • 2AR 250 Annovi Reverberi BLUEFLEX piston diaphragm pump
  • 2AR 250 Annovi Reverberi BLUEFLEX piston diaphragm pump
  • 2AR 250 Annovi Reverberi BLUEFLEX piston diaphragm pump
  • 2AR 250 Annovi Reverberi BLUEFLEX piston diaphragm pump
  • 2AR 250 Annovi Reverberi BLUEFLEX piston diaphragm pump
zł5,300.00
VAT included
Quantity

AR32043
Available
Capacity (l/min) 254
Pmax (bar) 20
Power (kW) 8,6
Type 6 membranes

AR 250 Annovi Reverberi BLUEFLEX piston diaphragm pump

Part number 32043
Application - Semi-hydraulic low-pressure diaphragm pumps for weed control and liquid fertilisation
- The pumps AR DUE, AR202 and AR252 are diaphragm pumps for horticulture
Properties - All parts that come in contact with liquid are plastic-coated. The AR DUE, AR202 and AR252 pumps are made from anodised aluminium
The oil bath crank drive has a control tank (except the AR DUE)
Screws with galvanised protection treatment made from Dacromet
Consists of - Piston diaphragm pump with safety valve and air chamber (except for AR DUE, AR202 and AR252)
- The pumps are supplied with rubber membranes as standard
Technical information

Avaibale kind of shaft:

- SP: pump with universal shaft as driving shaft
- Bp C: pump with a cardan shaft 1 3/8" 6 pieces
- 32043 - Bp C/C: pump with through shaft: two-sided cardan shaft 1 3/8" – 6 piece – 1 3/8" – 6 piece
- BpTwin: pump with through shaft: two-sided cardan shaft 1 3/8" – 6 piece – 1 3/8" – 6 piece
Unit piece
Max. temp (°C) 60
Capacity (l/min) 254
Pmax (bar) 20
Power (kW) 8,6
Type 6 membranes
Shaft type 1 3/8" (6) + 1 3/8" (6)
Ø Intake (mm) 50
Ø Outlet (mm) 35
Max. revolutions (Rpm) 550
Width (mm) 411
Height (mm) 480
Weight (kg) 36
